Left Variable Valve Timing Oil Control Solenoid (G1818509): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    NOTE: Lubricate the O-ring seals with clean engine oil.

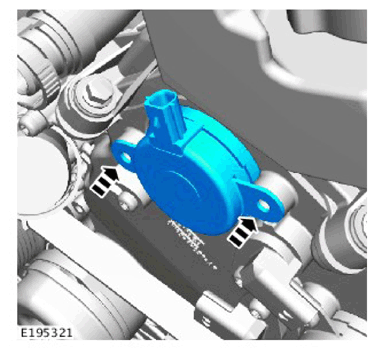

    G11308519Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the variable valve timing oil control solenoid.

  2. G11293329Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 2 retaining bolts and connect the electrical connector.

    Torque  : 10Nm

  3. CAUTION:
    • Make sure that the mating faces are clean and free of foreign material.
    • Lubricate the O-ring seals with clean engine oil.

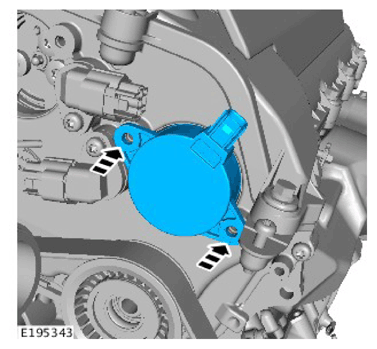

    G11308521Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the variable valve timing oil control solenoid.

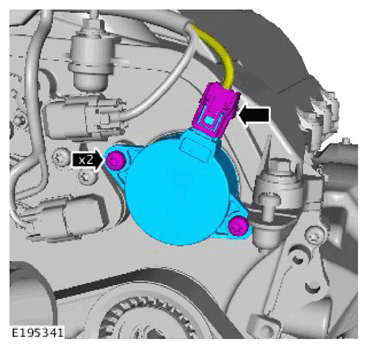

  4. G11308517Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 2 retaining bolts and connect the electrical connector.

    Torque  : 10Nm

  5. Install the electric thermostat.

    Refer to: ELECTRIC THERMOSTAT
