Fuel Rail Pressure Sensor (G1818489): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Make sure that the tools and equipment are clean, free of foreign material and lubricant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Always follow the fuel system health and safety precautions, when carrying out any repairs to the fuel system.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Release the fuel system pressure.
Refer to: FUEL SYSTEM PRESSURE RELEASE
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the engine cover.
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL
Remove the cowl panel.
Refer to: COWL PANEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

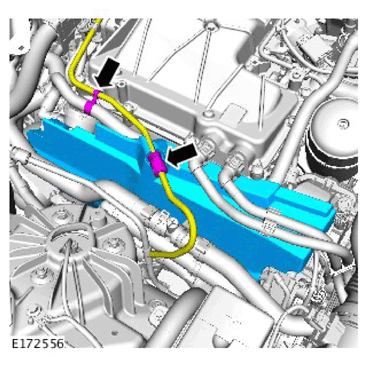

Remove the Noise, Vibration and Harshness (NVH) material.
Clean the fuel injection components.
Refer to: FUEL INJECTION COMPONENT CLEANING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

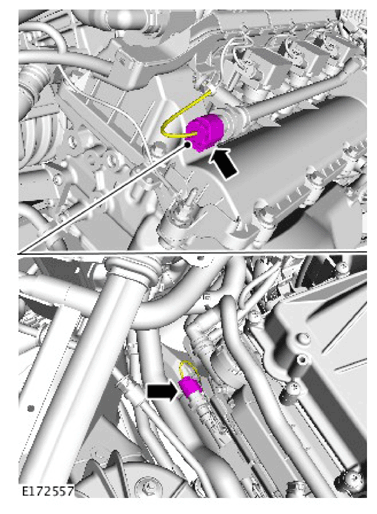

Disconnect the fuel rail pressure sensor.
WARNING: Be prepared to collect escaping fuel.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

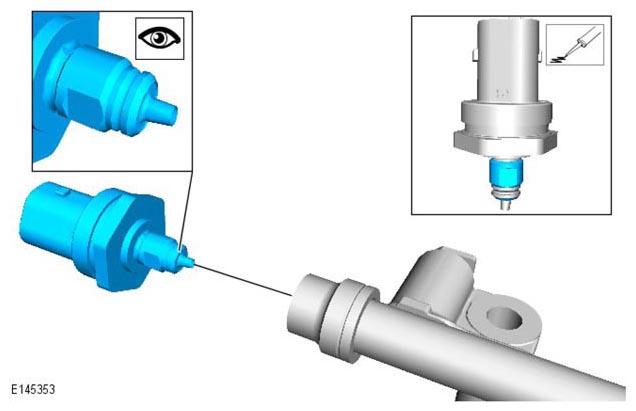

Remove the fuel rail pressure sensor.
