Engine Oil Level Sensor (G1818450): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
  3. CAUTION:
    • Be prepared to collect escaping oil.
    • Before the disconnection or removal of any components, make sure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

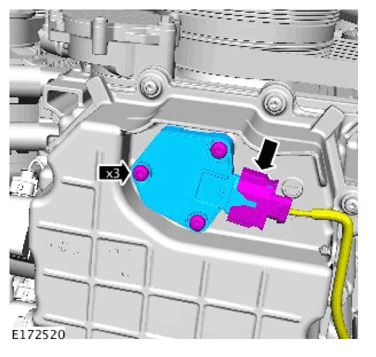

    G11308491Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 12Nm
