Exhaust Back-Pressure Sensor - If Equipped
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

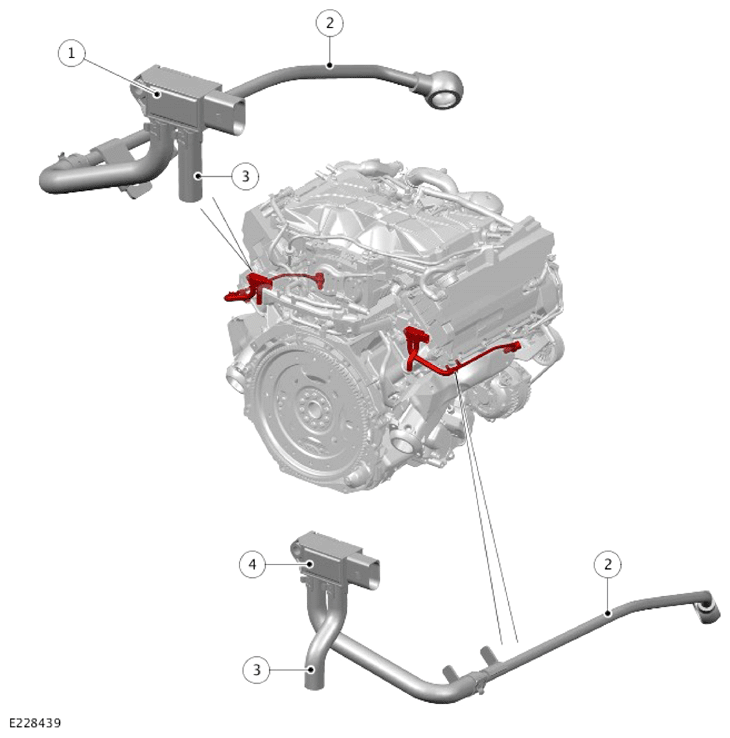

| ITEM | DESCRIPTION |
|---|---|
| 1 | Bracket - Exhaust back-pressure sensor |
| 2 | Exhaust back-pressure sensor - Bank 1 |
| 3 | Vent pipe |
| 4 | Exhaust back-pressure sensor - Bank 2 |
| 5 | Connection pipe to exhaust system |
| 6 | Sealing washer |
| 7 | Banjo bolt |
An exhaust back-pressure sensor is mounted to the engine for each cylinder bank. Each exhaust back-pressure sensor is mounted on a bracket, which is secured to the respective camshaft cover with 2 nuts. The exhaust back-pressure sensor is connected to the exhaust manifold via a hose and a pipe. The pipe is secured to the exhaust manifold with a banjo bolt and sealed with 2 self retaining sealing washers.
The exhaust back-pressure sensors are connected to the Powertrain Control Module (PCM) via hardwired connection.
For additional information, Refer to: GASOLINE PARTICULATE FILTER
