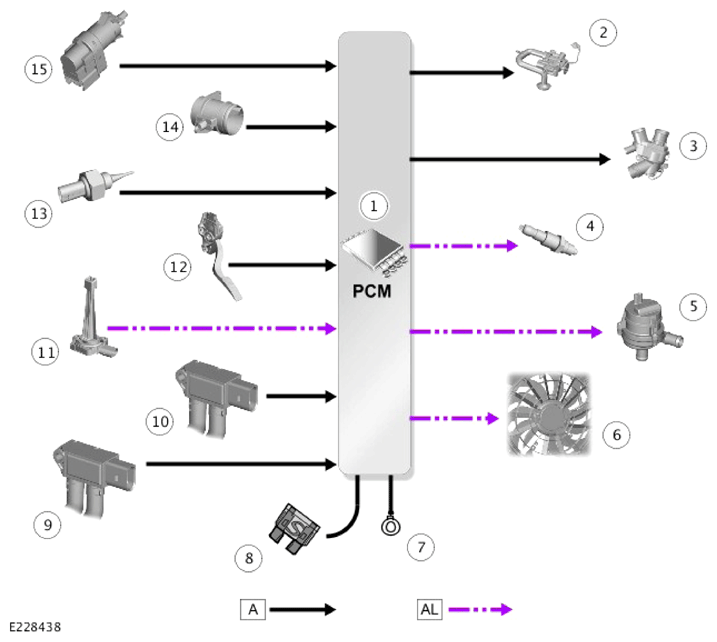

Control Diagram - 2 Of 2
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM).
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Variable oil pump control solenoid |
| 3 | Electric thermostat |
| 4 | Heated Oxygen Sensor (HO2S) heater element (6 off) |
| 5 | Charge air cooler coolant pump |
| 6 | Electric cooling fan |
| 7 | Ground |
| 8 | Power supply |
| 9 | Exhaust back-pressure sensor - Bank 1 (if equipped) |
| 10 | Exhaust back-pressure sensor - Bank 2 (if equipped) |
| 11 | Oil level and temperature sensor |
| 12 | Accelerator Pedal Position (APP) sensor |
| 13 | Charge air temperature sensor |
| 14 | Mass Air Flow and Temperature (MAFT) sensor (2 off) |
| 15 | Brake pedal switch |
