Component Location - 3 Of 4
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

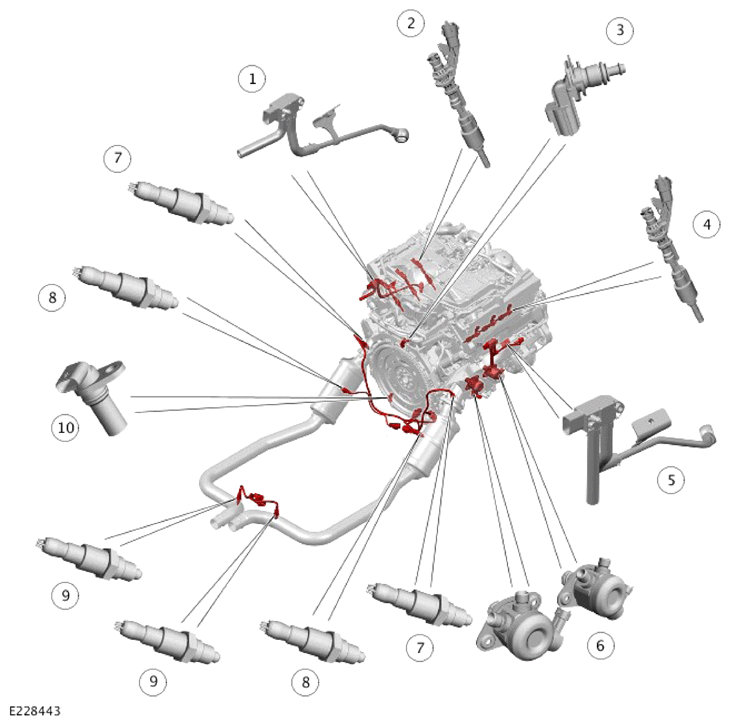

| ITEM | DESCRIPTION |
|---|---|
| 1 | Exhaust back-pressure sensor - Bank 2 (if equipped) |
| 2 | Fuel injector - Bank 2 (3 off) |
| 3 | Engine Coolant Temperature (ECT) sensor |
| 4 | Fuel injector - Bank 1 (3 off) |
| 5 | Exhaust back-pressure sensor - Bank 1 (if equipped) |
| 6 | High Pressure (HP) fuel pump (2 off) |
| 7 | Pre catalyst Heated Oxygen Sensor (HO2S) (2 off) |
| 8 | Mid catalyst HO2S (2 off) |
| 9 | Post catalyst HO2S (2 off) |
| 10 | Crankshaft Position (CKP) sensor |
