Component Location - 2 Of 4

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

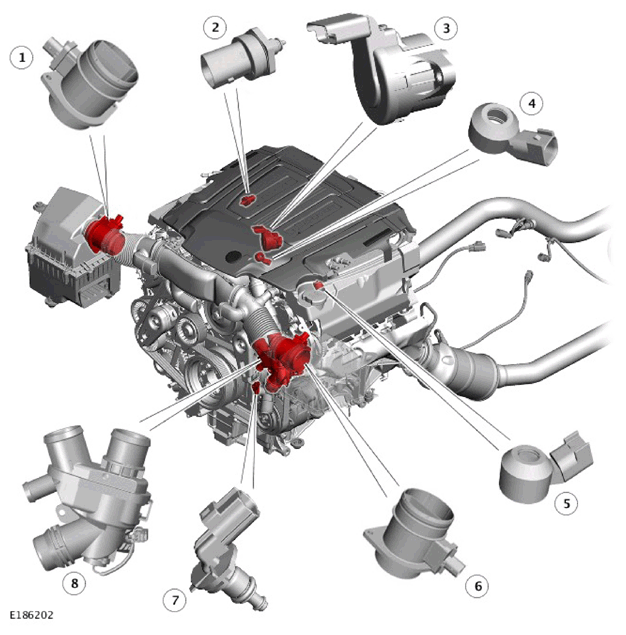

G11328679Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Right Mass Air Flow and Temperature (MAFT) sensor
2 Fuel Rail Pressure and Temperature (FRPT) sensor
3 Supercharger bypass valve actuator
4 Knock sensor - Bank 1
5 Knock sensor - Bank 2
6 Left Mass Air Flow and Temperature (MAFT) sensor
7 Engine Coolant Temperature (ECT) sensor 2
8 Electric thermostat
