Engine Cooling: Description: Radiator
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

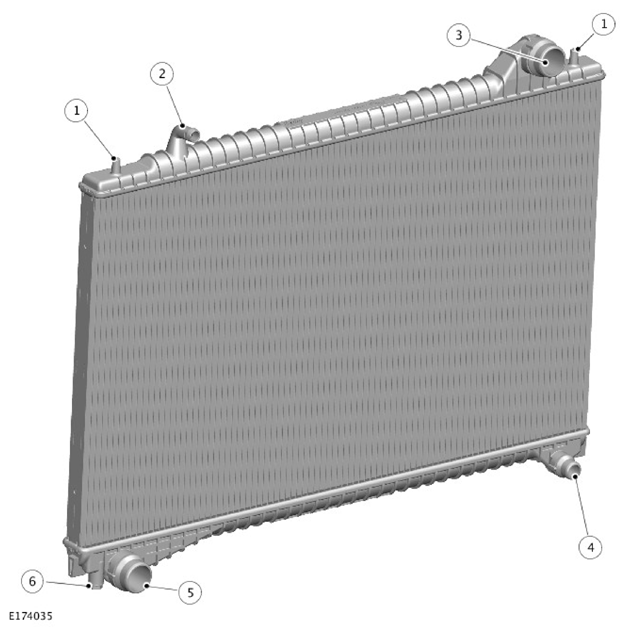

| ITEM | DESCRIPTION |
|---|---|
| 1 | Locating spigot (quantity 2) |
| 2 | Vent hose connection |
| 3 | Upper hose connection |
| 4 | Automatic Transmission Fluid (ATF) cooler coolant supply hose connection |
| 5 | Lower hose connection |
| 6 | Drain plug |
The radiator is a vertical flow type with an aluminum core and plastic end tanks. The radiator is part of the cooling module and is attached to the vehicle by locating spigots and supports integrated into the upper end tank and the radiator fan shroud. The supports are installed in rubber bushes located in mounting brackets on the front subframe. The locating spigots are installed in rubber bushes located in mounting brackets on the front vertical member.
The two end tanks incorporate connections for the upper and lower hoses, and the coolant supply hose of the Automatic Transmission Fluid (ATF) cooler. A drain plug is installed in the left side of the bottom end tank.
