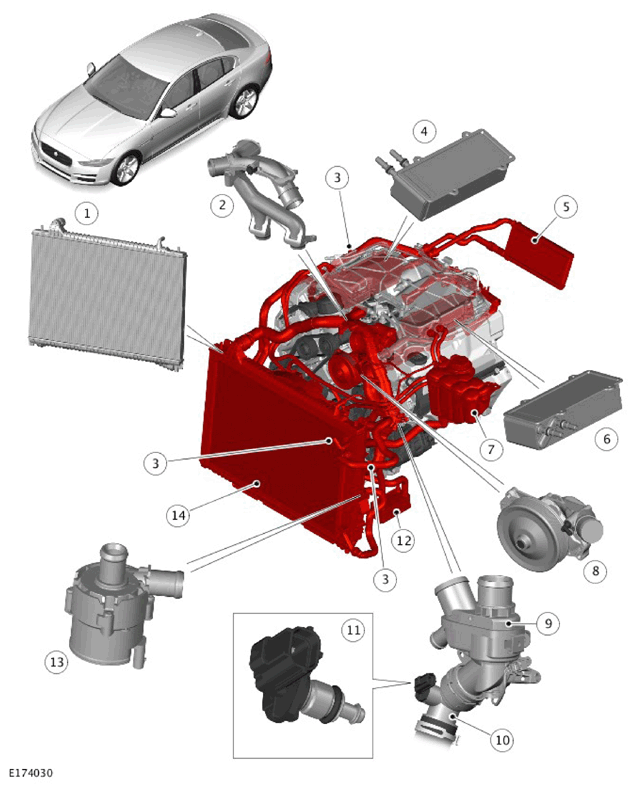

Component Location - Sheet 1 Of 3 - Front View
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Radiator |
| 2 | Coolant outlet tube |
| 3 | Bleed screw (quantity 3) |
| 4 | Charge air cooler - right |
| 5 | Heater core |
| 6 | Charge air cooler - left |
| 7 | Coolant expansion tank |
| 8 | Coolant pump |
| 9 | Electric thermostat |
| 10 | Lower pipe connection |
| 11 | Engine Coolant Temperature (ECT) sensor 2 |
| 12 | Automatic Transmission Fluid (ATF) cooler |
| 13 | Charge air coolant pump |
| 14 | Charge air radiator |
