Right Engine Mount (G185099): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
Some components shown removed for clarity.

Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: ENGINE UNDERSHIELD - PROJECT 8

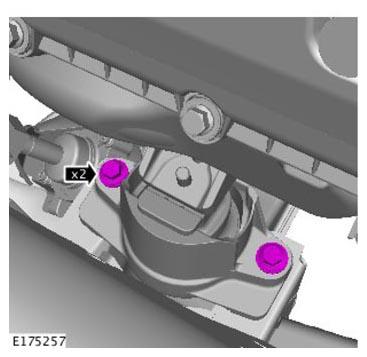

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 60Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 48Nm
CAUTION: Use a wooden block to protect the oil pan when supporting the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable hydraulic jack, support the engine.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 48Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 12Nm
NOTE: Wiring harnesses shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 48Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
