Fuel Pump Camshaft (G1851649): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G11285338Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  2. CAUTION: Take extra care not to damage the mating faces.
    G11299714Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  3. G11299713Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 12Nm

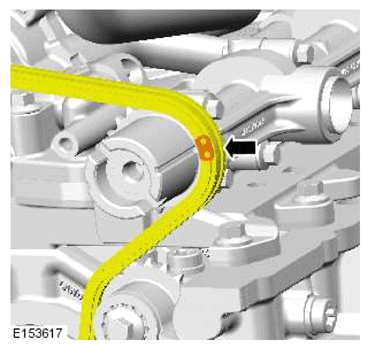

  4. G13998996Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  5. G11299719Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. CAUTION: Using a suitable tool, lock the component.
    G11287051Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 21Nm

  7. G11286990Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the lower timing chain making sure the coloured chain links align correctly with the fuel rail high-pressure fuel pumps camshaft, balance weight and crankshaft sprocket markings.
  8. G11286982Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 11Nm

  9. Refer to: OIL PAN EXTENSION
  10. Connect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
