Cylinder Numbering

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

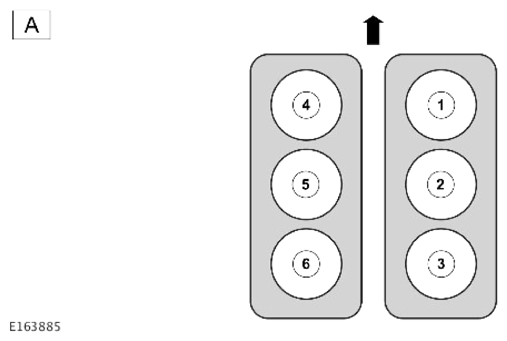

G13903475Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
A DIN standard cylinder numbering

DIN cylinder firing order:  1, 4, 2, 5, 3, 6
