Fuel Tank Draining - Project 8 (G2252195): Draining

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapours are always present and may ignite. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.

CAUTION:

Make sure the workshop area in which the vehicle is being worked on is as clean and as dust free as possible. Foreign matter from work on clutches, brakes or from machining or welding operations can contaminate the fuel system and may result in later malfunction.
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all components must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Always follow the fuel system health and safety precautions when doing any repairs to the fuel system.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Release the pressure in the fuel system.
Refer to: FUEL SYSTEM PRESSURE RELEASE
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

The following step(s) applies to:

Vehicles without seatbelt retention bar
Remove the second row seat cushion.
Refer to: SECOND ROW SEAT CUSHION - PROJECT 8

The following step(s) applies to:

Vehicles with seatbelt retention bar
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

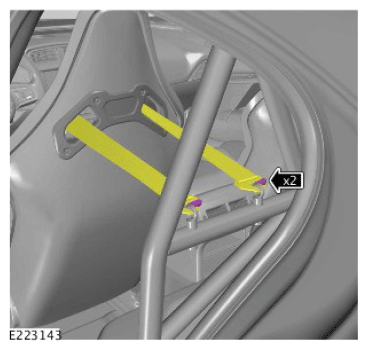

Release the 4-point harness from the seatbelt retention bar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

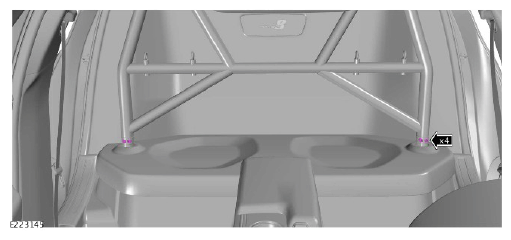

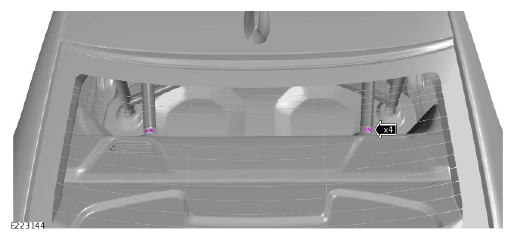

Remove the 4 upper bolts from the seatbelt retention bar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 4 lower bolts from the seatbelt retention bar.
CAUTION: Protect the surrounding paintwork to avoid damage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

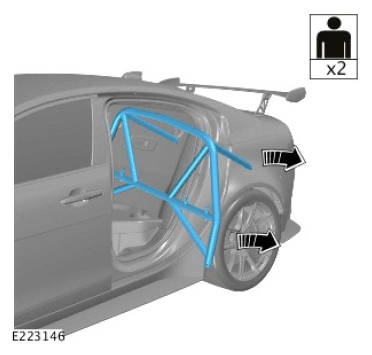

With assistance, remove the seatbelt retention bar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

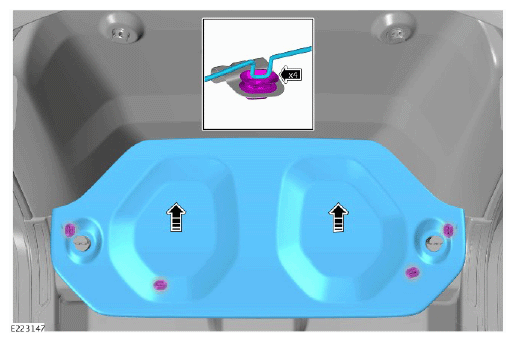

Release the 4 clips and remove the trim panel.

The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

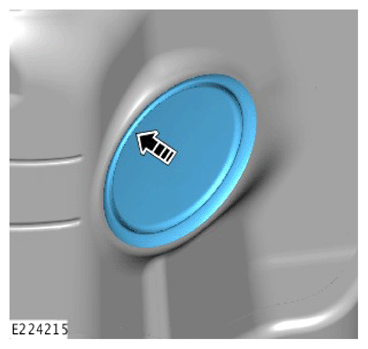

Remove the access cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

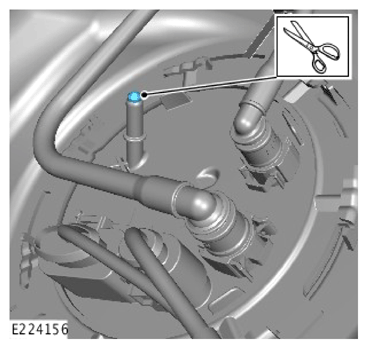

Cut the tip off the fuel tank drain port.
NOTE: A fuel vacuum drain unit must be attached to the special tool to achieve full fuel tank drain.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

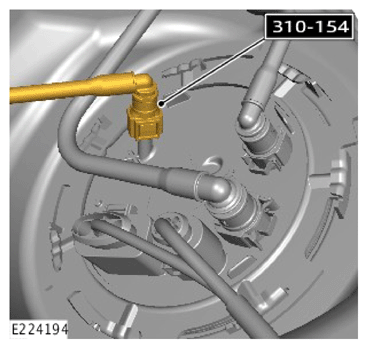

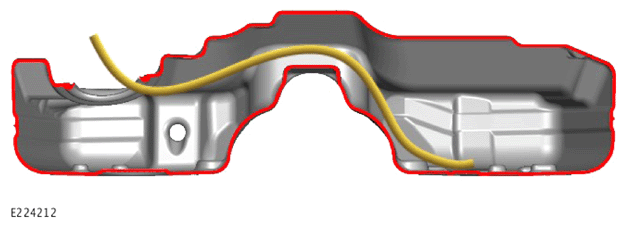

- Connect the fuel tank drain equipment ground cable to the vehicle and install the special tool.
  Special Tool(s): 310-154
- Drain the fuel tank.
General Equipment: Fuel retrieval and storage system
WARNING: Be prepared to collect escaping fuel.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

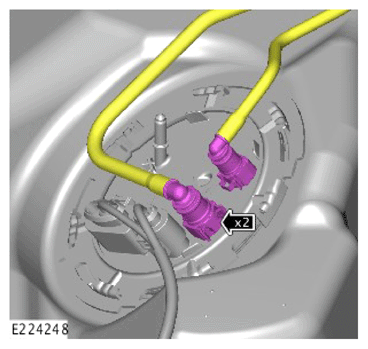

Disconnect the 2 fuel lines.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

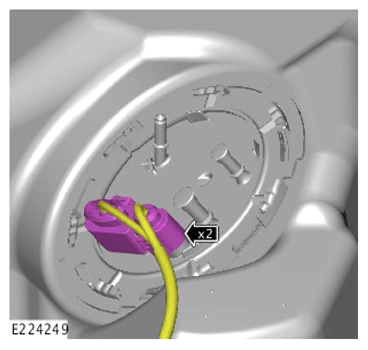

Disconnect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

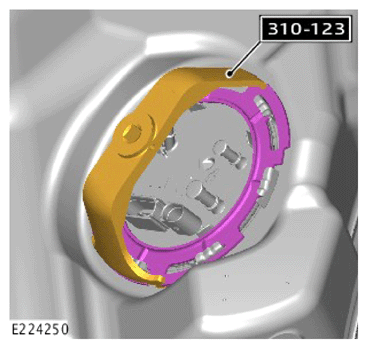

Using the special tool remove the locking ring.

Special Tool(s): 310-123
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

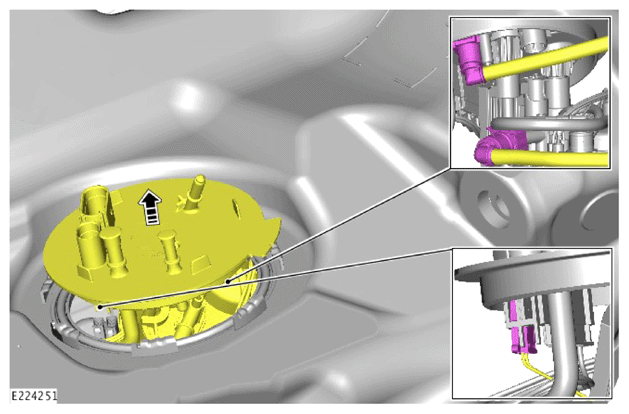

Disconnect the 2 fuel pipes and the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

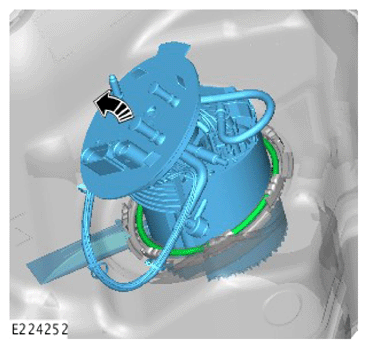

- Remove the fuel pump and sender unit.
- Inspect the O-ring seal and replace if damaged or worn.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Recover the remaining fuel from the tank.
