Removal And Installation: Battery: Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
If a new battery is installed, the battery monitoring system (BMS) must be reset using Jaguar approved diagnostic equipment.

Refer to: BATTERY AND BATTERY CHARGING HEALTH AND SAFETY PRECAUTIONS

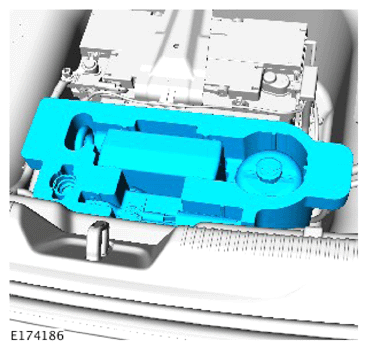

Obtain and record the audio unit preset radio frequencies.

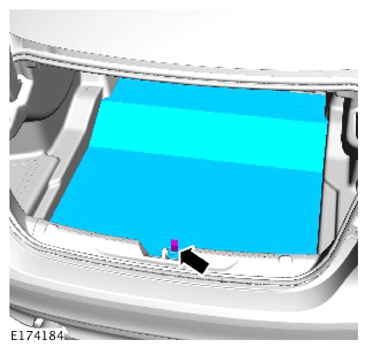

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: If equipped.

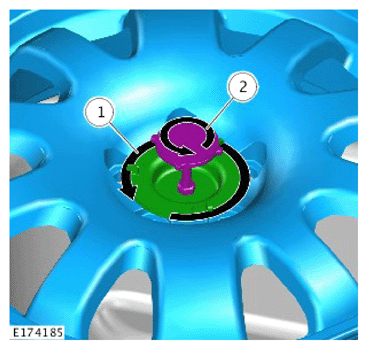

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: If equipped.

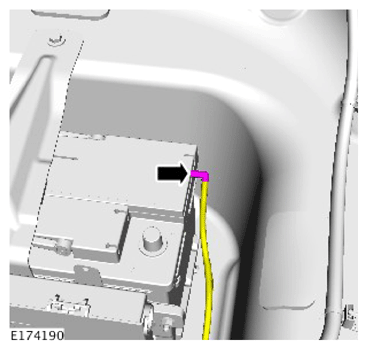

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

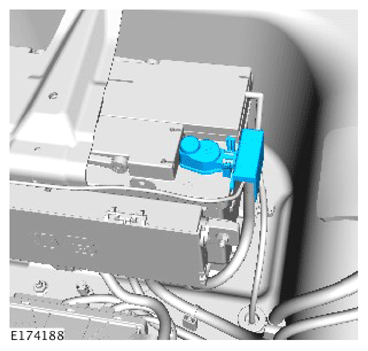

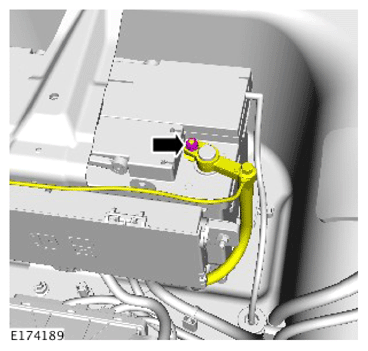

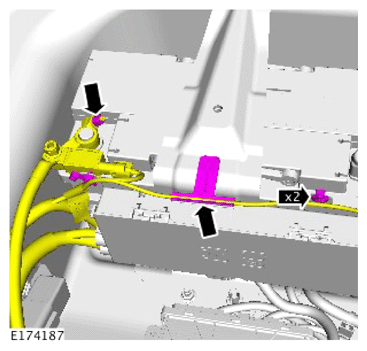

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 6Nm

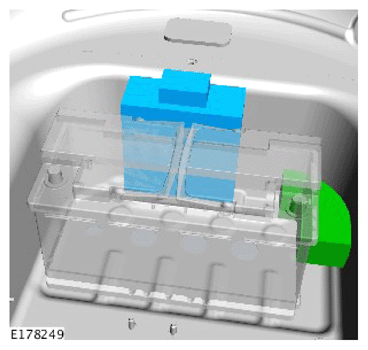

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

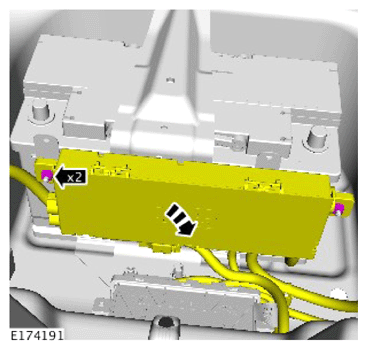

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 6Nm
WARNING: Batteries contain sulphuric acid, avoid contact with skin, eyes or clothing. Shield your face and protect your eyes when working near the battery to guard against possible splashing of the acid solution. In case of acid contact with the skin or eyes, flush immediately for a minimum of 15 minutes and seek prompt medical attention. If swallowed, call a physician immediately. Failure to follow these instructions may result in personal injury.

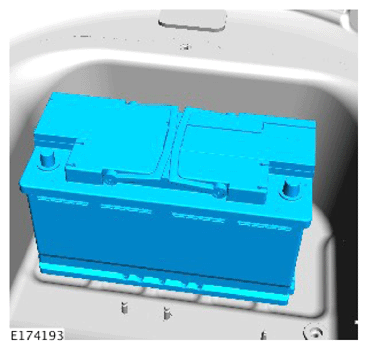

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7Nm

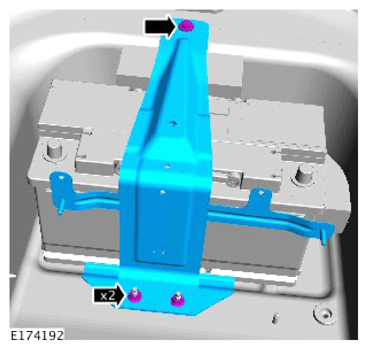

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25Nm
CAUTION: Note the installed position of the noise, vibration and harshness (NVH) material prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
