Removal And Installation: Battery: Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION:
    • Make sure that the noise, vibration and harshness (NVH) material is correctly located.

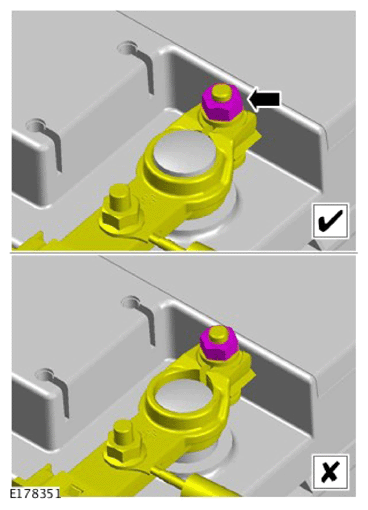

    • Ensure the clamping lug on the BMS is below the top of the negative terminal post as shown.
    • Make sure the battery monitoring system (BMS) electrical connector is connected to the module, before installing the BMS on to the battery terminal.
    G14008721Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    To install, reverse the removal procedure.

  2. NOTE: This step is only necessary when installing a new battery.

    Using Jaguar approved diagnostic equipment, reset the battery monitoring system (BMS).

  3. Door Window Motor Initialization
  4. Enter the audio unit preset radio frequencies.
  5. Reset the clock to the correct time.
  6. Start the engine and allow to idle until the engine reaches normal operating temperature.
  7. Switch the engine off.
