VQM Bypass Mode
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

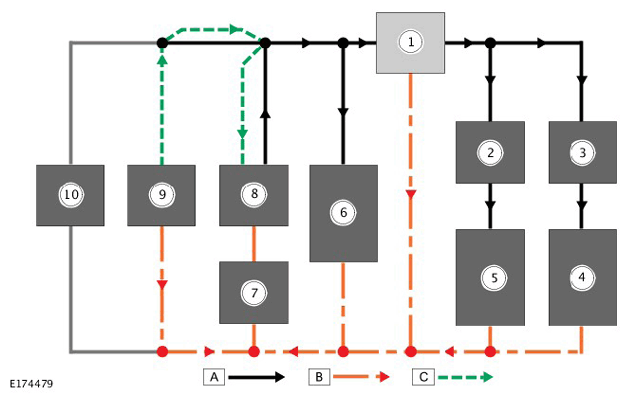

A = BATTERY VOLTAGE; B = GROUND; C = BATTERY CHARGING VOLTAGE.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Voltage Quality Module (VQM) |
| 2 | Rear Junction Box (RJB) |
| 3 | Quiescent Current Control Module (QCCM) |
| 4 | Voltage sensitive loads 1 |
| 5 | Voltage sensitive loads 2 |
| 6 | Electric loads |
| 7 | Battery Monitoring System (BMS) control module |
| 8 | Battery |
| 9 | Generator |
| 10 | Starter motor |
Bypass mode is the VQM's normal operating mode. In this mode the power from the battery to the voltage sensitive loads passes through on the VQM without any intervention. The VQM can support 600W of continuous power in bypass mode.
