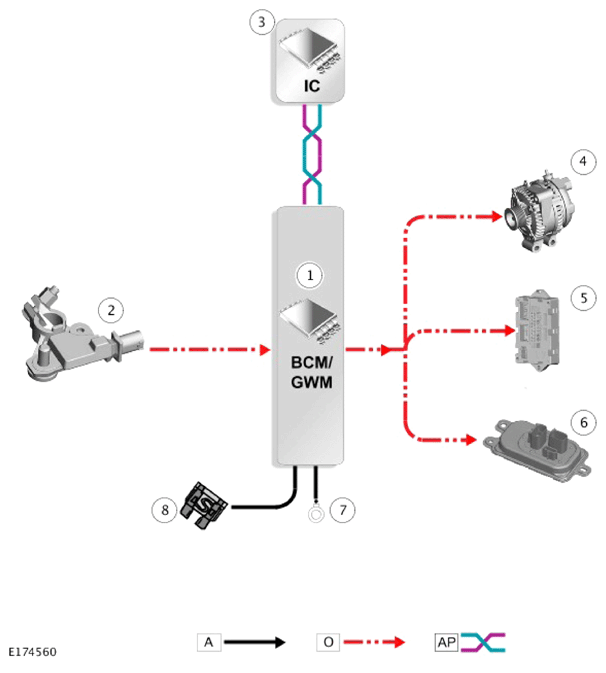

Input/Output Diagram - Sheet 1 Of 2 - Battery System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; O = LIN (LOCAL INTERCONNECT NETWORK) BUS; AP = MS (MEDIUM SPEED) CAN (CONTROLLER AREA NETWORK) COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 2 | Battery Monitoring System (BMS) control module |
| 3 | Instrument Cluster (IC) |
| 4 | Generator |
| 5 | Quiescent Current Control Module (QCCM) |
| 6 | Voltage Quality Module (VQM) |
| 7 | Ground |
| 8 | Power supply - Rear Junction Box (RJB) |
