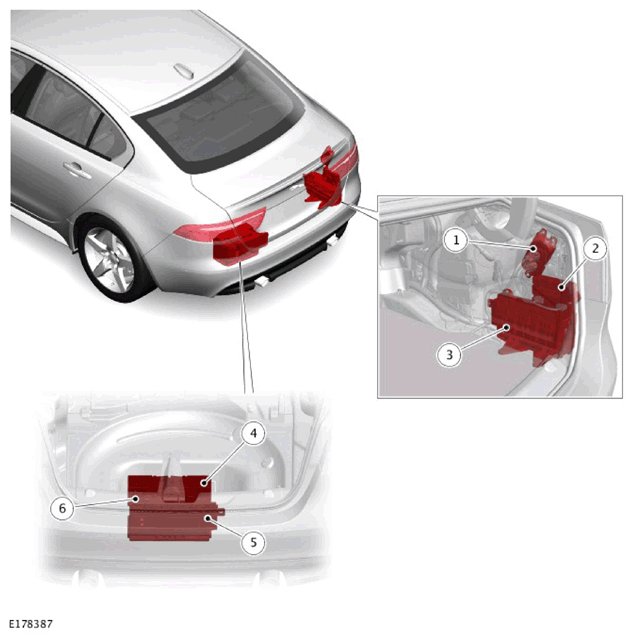

Component Location - Sheet 2 Of 2 - Battery System Components
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Voltage Quality Module (VQM) |
| 2 |
Quiescent Current Control Module (QCCM) |
| 3 |
Rear Junction Box (RJB) |
| 4 |
Battery |
| 5 |
Battery Junction Box (BJB) |
| 6 |
Battery Monitoring System (BMS) control module |
