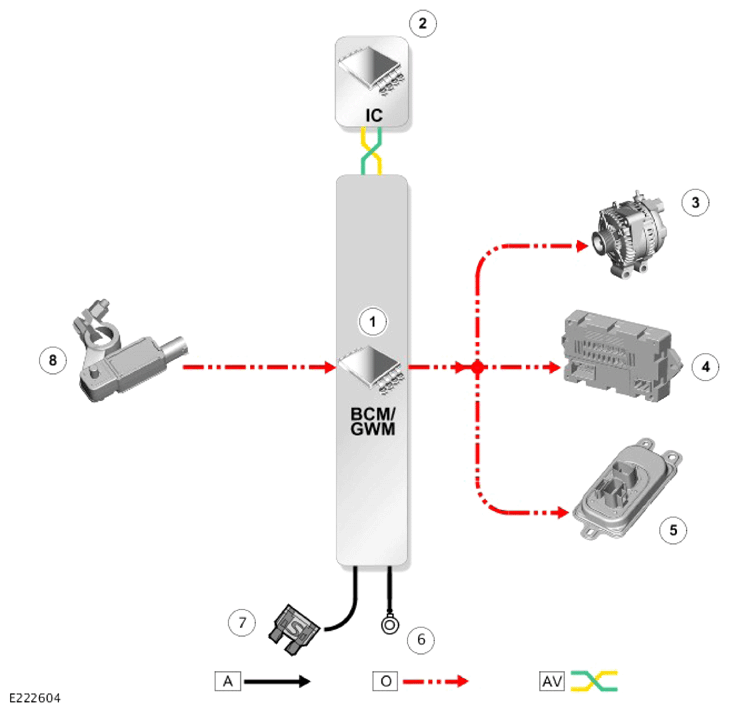

Control Diagram - 1 Of 2 - Startup Battery System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN) BUS: AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) |
| 2 | Instrument Cluster (IC) |
| 3 | Generator |
| 4 | Quiescent Current Control Module (QCCM) |
| 5 | Voltage Quality Module (VQM) |
| 6 | Ground |
| 7 | Power supply - Rear Junction Box (RJB) |
| 8 | Battery Monitoring System (BMS) control module |
