Component Location - 1 Of 2

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

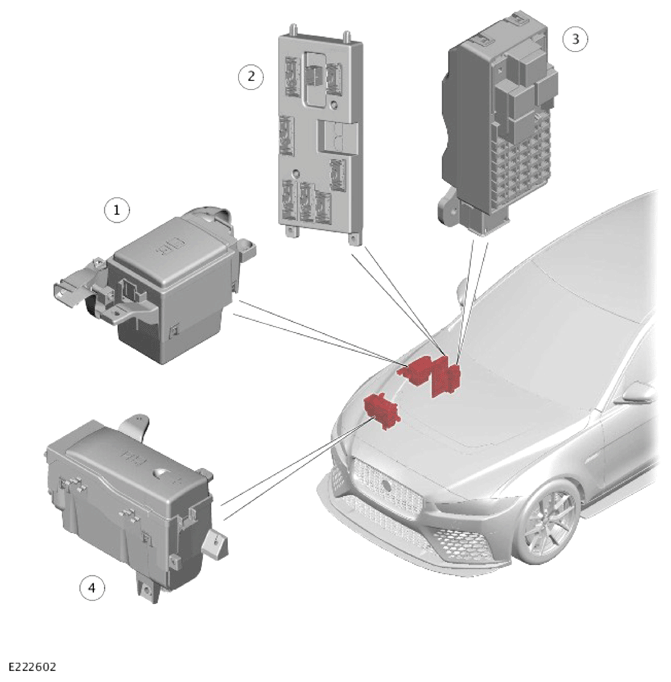

G14008618Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Rear Engine Junction Box (EJB)
2 Body Control Module/Gateway Module (BCM/GWM)
3 Passenger Junction Box (PJB)
4 Front EJB
