High Pressure Fuel Pump 1 (G1821201): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.

CAUTION:

Do not allow the unions to hit the olive ends of the high-pressure fuel supply line as this may damage the ends of the high-pressure fuel supply line and allow foreign matter to enter the fuel injection system.
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Refer to: FUEL SYSTEM PRESSURE RELEASE
Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL
Refer to: RIGHT AIR CLEANER OUTLET PIPE
Refer to: ENGINE UNDERSHIELD
CAUTION:
- Be prepared to collect escaping coolant.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

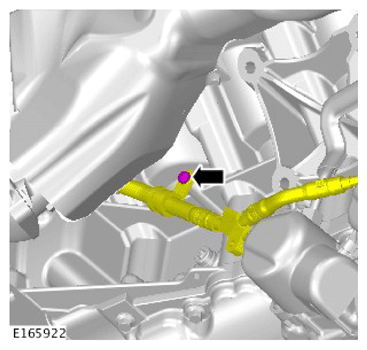

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Be prepared to collect escaping coolant.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: FUEL INJECTION COMPONENT CLEANING
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- This fuel pipe can be re-used, inspect for signs of damage. Renew if necessary.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
If equipped.
Refer to: HALFSHAFT SUPPORT BRACKET
Refer to: GENERATOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Use a wooden block to protect the oil pan when supporting the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Support the engine.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Wiring harnesses shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Make sure that the area around the component is clean and free of foreign material.
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Make sure that the area around the component is clean and free of foreign material.
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- Remove and discard the high-pressure fuel supply lines.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Left fuel rail supply pipe Quantity: 1 .

Renew Part: Right fuel rail supply pipe Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosen the Torx screws a turn each at a time.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
