Specifications - Project 8
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
Component torque location
PART SPECIFICATION
| Description | Nm | lb-ft | lb-in | |
|---|---|---|---|---|
| 1 | Hood to hinge bracket nuts. | 25 | 18.4 | |
| 2 | Hood safety catch assembly bolts. | 10 | 7.3 | |
| 3 | Hood vent nuts. | 7 | 5.1 | |
| 4 | Hood latch panel. | 25 | 18.4 | |
| 5 | Fender bolts. | 10 | 7.3 | |
| 6 | Secondary Bulkhead Left Outer Panel bolts. | 6 | 4.4 | |
| 7 | Secondary Bulkhead Left Inner Panel bolts. | 6 | 4.4 | |

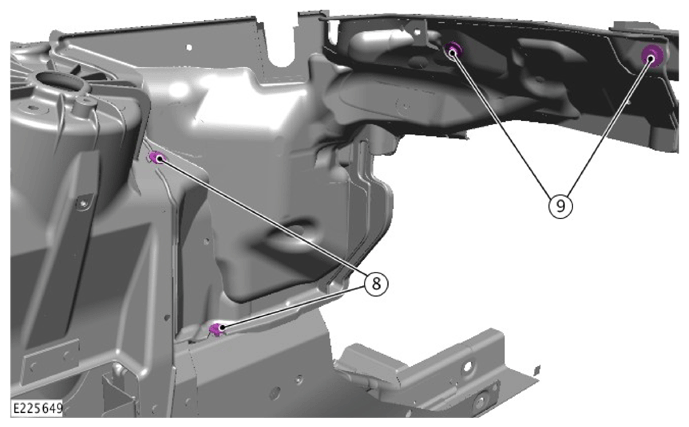

| 8 | Secondary Bulkhead Right Outer Panel bolts. | 6 | 4.4 | |
| 9 | Secondary Bulkhead Right Inner Panel bolts. | 6 | 4.4 | |

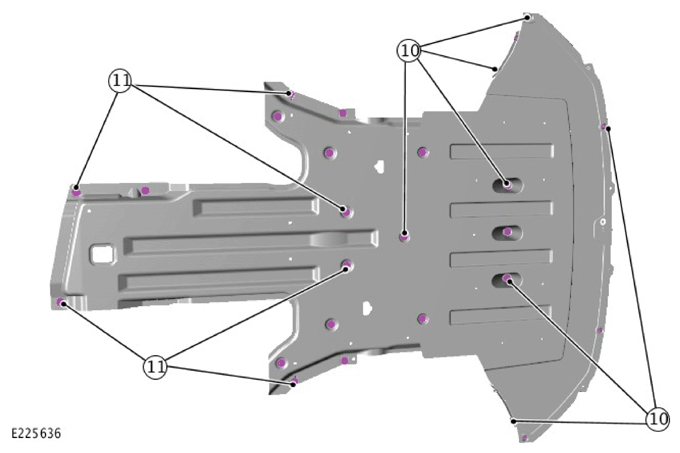

| 10 | Engine Under shield bolts. | 9 | 6.6 | |
| 11 | Transmission Under shield bolts. | 9 | 6.6 |
