Transmission UNDERSHIELD - Project 8 (G2248771): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Jacking and Lifting article (Description and Operation).

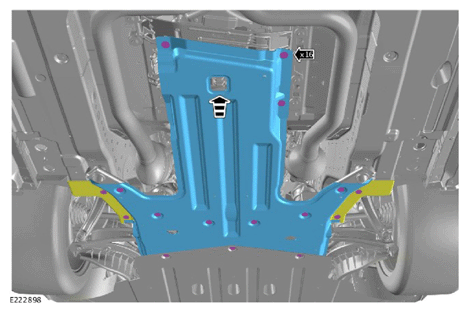

  2. G12546731Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 16 bolts.
    • Remove the transmission undershield.
