Secondary Bulkhead Right Panel - V6 S/C 3.0L Petrol (G1817283): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:
Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL (G1565937) .

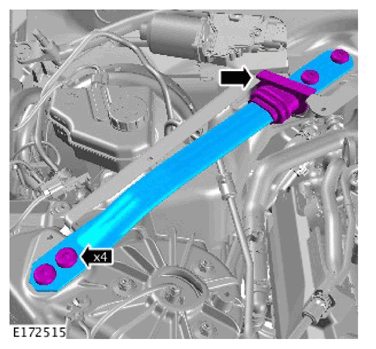

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 55 Nm

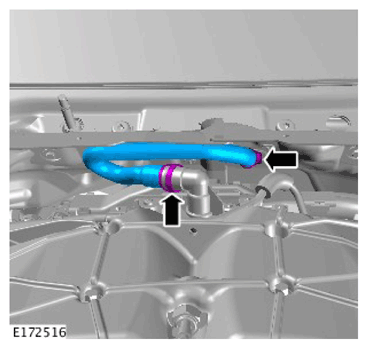

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

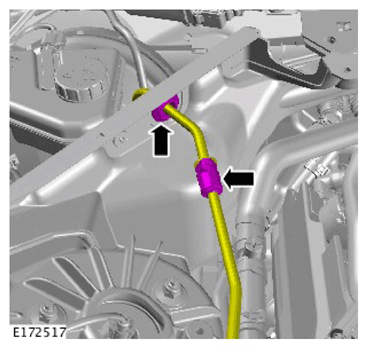

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: LHD vehicles.

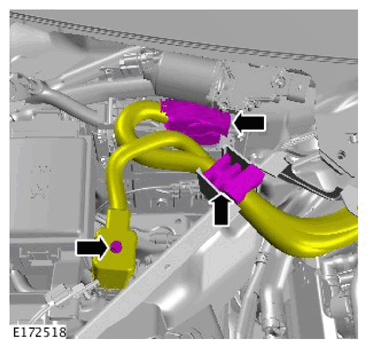

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 8 Nm

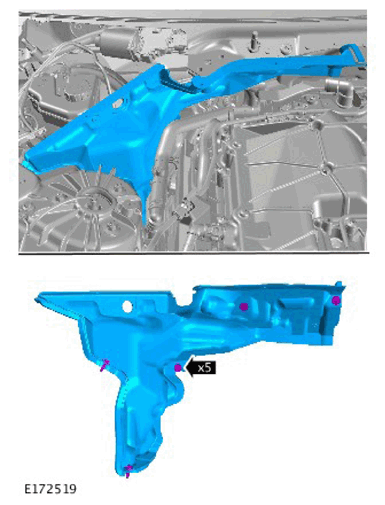

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 10 Nm
