Secondary Bulkhead Right Panel - INGENIUM I4 2.0L Diesel (G1817281): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: Battery and Charging System article (General Information, Specifications).

  2. Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL (G1817285) .
  3. Refer to: COWL PANEL .

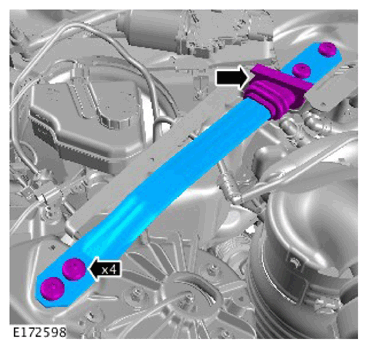

  4. G11311488Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 55 Nm

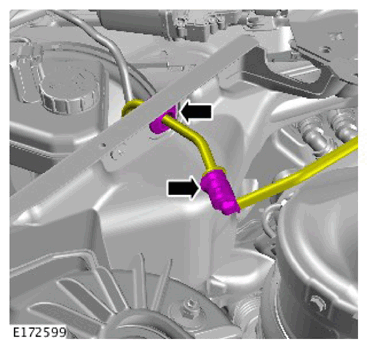

  5. G11311489Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. NOTE: LHD vehicles.

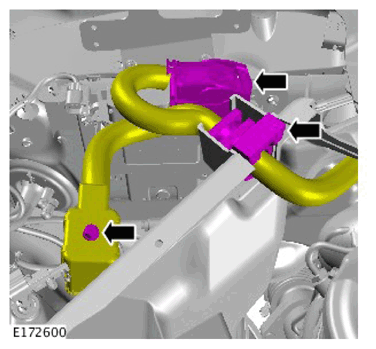

    G11311490Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 8 Nm

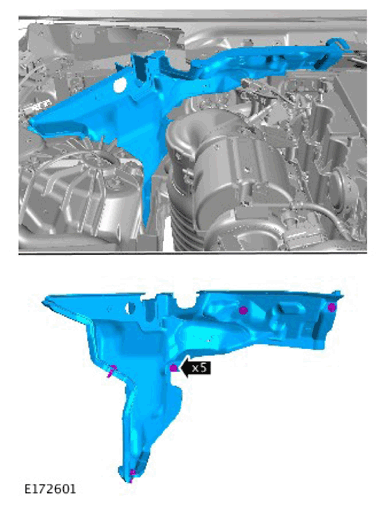

  7. G11311491Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 10 Nm
