Secondary Bulkhead Right Outer Panel - Project 8 (G2248501): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Remove the cowl panel.
Refer to: COWL PANEL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

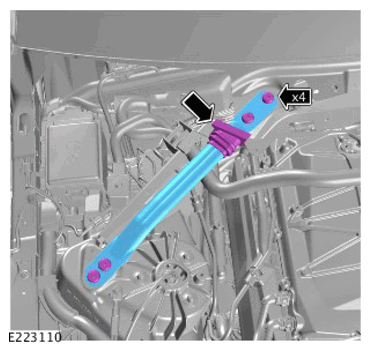

- Remove the 4 bolts.
- Release the grommet.
- Remove the engine compartment brace.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 3 electrical connectors.
- Release the grommet.
- Move the wiring harness to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the brake booster vacuum pipe.
- Release the clip.
- Release the grommet.
- Move aside the brake booster vacuum pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the retaining clip.
- Remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the secondary bulkhead right outer panel.
