Secondary Bulkhead Left Panel - V6 S/C 3.0L Petrol (G1817280): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Refer to: Battery and Charging System article (General Information, Specifications).
Remove the RH secondary bulkhead panel.
Refer to: SECONDARY BULKHEAD RIGHT PANEL - V6 S/C 3.0L PETROL .

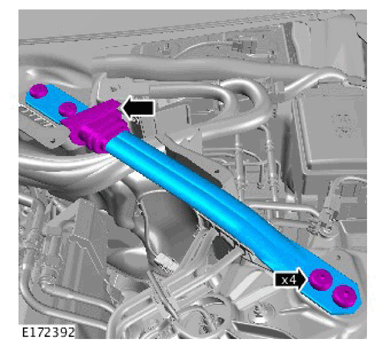

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 55 Nm

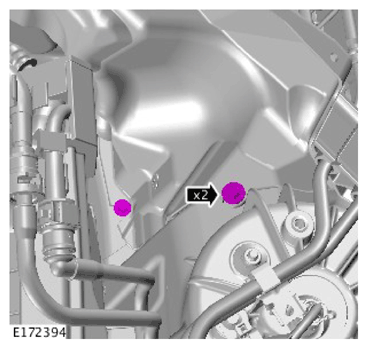

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 8 Nm

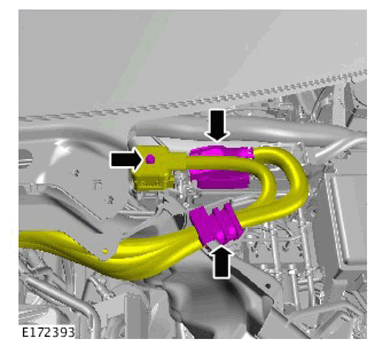

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 10 Nm

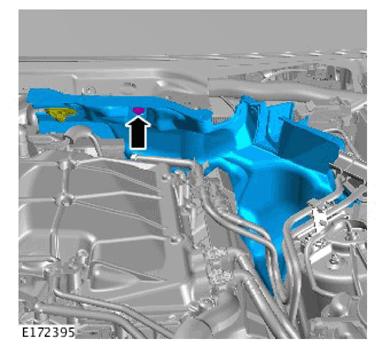

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 10 Nm
