Secondary Bulkhead Left Panel - INGENIUM I4 2.0L Petrol (G2020320): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: Battery and Charging System article (General Information, Specifications).
Remove the secondary bulkhead right panel.
Refer to: SECONDARY BULKHEAD RIGHT PANEL - INGENIUM I4 2.0L PETROL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

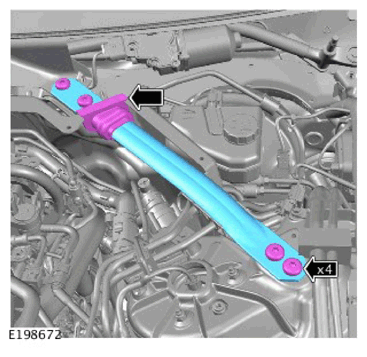

- Remove 4 bolts.
- Remove the engine compartment brace.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

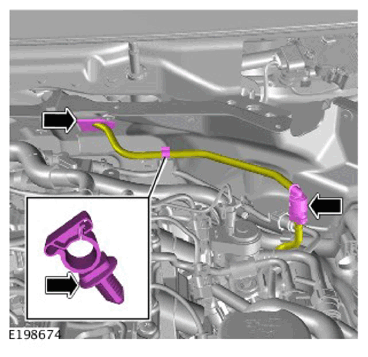

Disconnect the brake booster vacuum hose quick release connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

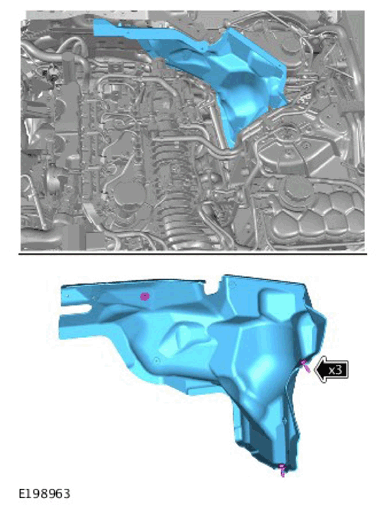

- Remove the 3 bolts.
- Remove the secondary bulkhead left panel.
