Secondary Bulkhead Left Panel - INGENIUM I4 2.0L Diesel (G1817278): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:
Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.
Refer to: Battery and Charging System article (General Information, Specifications).
Remove the RH secondary bulkhead panel.
Refer to: SECONDARY BULKHEAD RIGHT PANEL - INGENIUM I4 2.0L DIESEL .

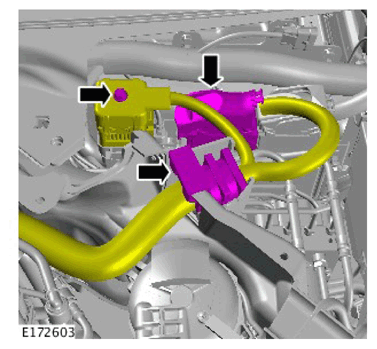

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 55 Nm

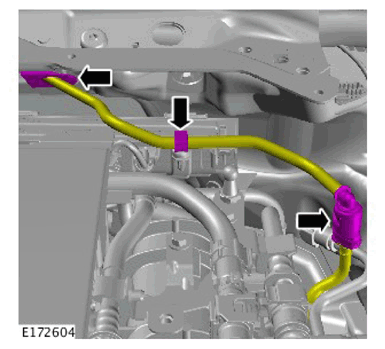

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 8 Nm

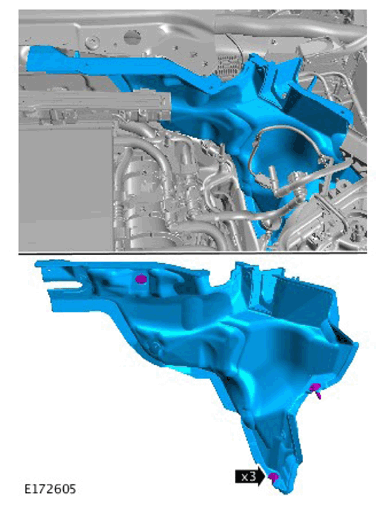

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the fuel filter.
Refer to: Fuel Filter article (Removal and Installation).

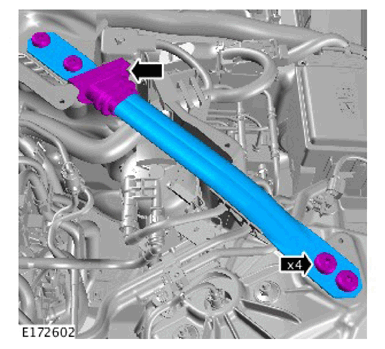

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque: 10 Nm
