Rear UNDERSHIELD - Project 8 (G2269180): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

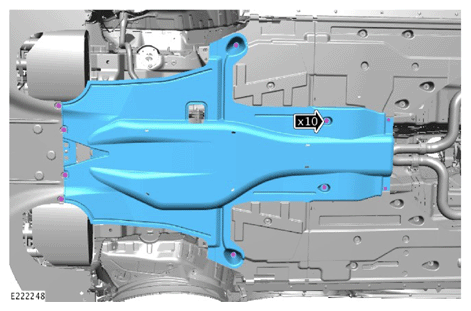

  1. G12546732Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the rear undershield.
    • Install and tighten the 10 bolts.

      Torque: 9 Nm
