Radiator Splash Shield (G1817598): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

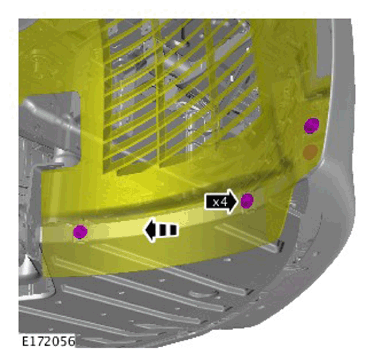

  2. G11311478Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Repeat step for other side.

    Torque: 7 Nm

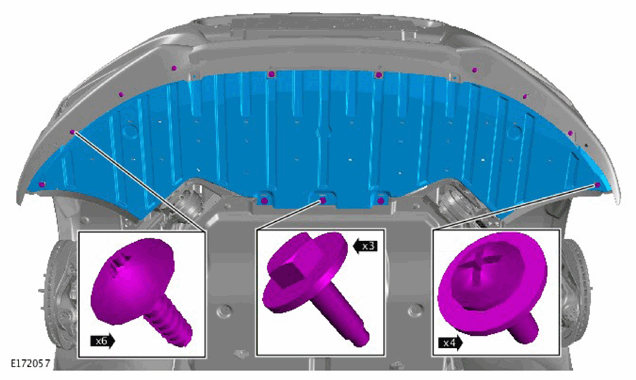

  3. G11311479Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 7 Nm
