Hood - Remove For Access And Install - Project 8 (G2249570): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:
- This step requires the aid of another technician.
- Do not tighten the nuts at this stage.
- With assistance, install the hood.
- Install the 6 nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

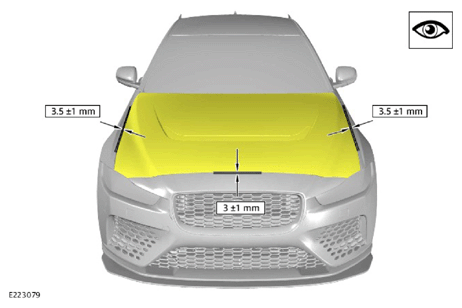

- Close the hood and check for alignment.
- Align the hood.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

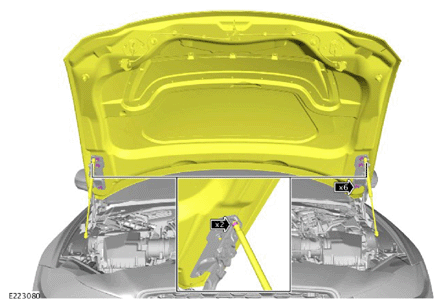

- Tighten the 6 nuts.
  Torque: 25 Nm
- Secure the 2 struts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Close the hood and check for alignment.
- If necessary, repeat the above adjustment procedure.
