Headlamp Mounting Bracket (G1798790): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Headlamp Assembly article (Removal and Installation).
  2. NOTE: Left side only.

    Refer to: Air Cleaner article (Removal and Installation).

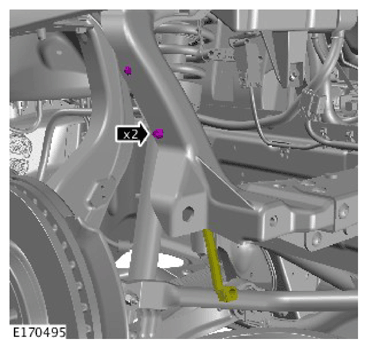

  3. G11311504Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

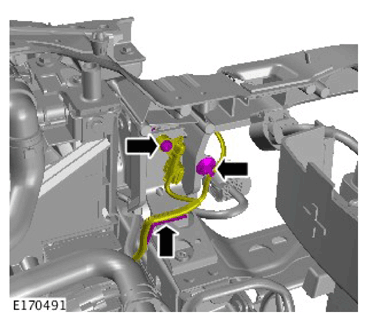

  4. G11311505Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  5. NOTE: Left side only.

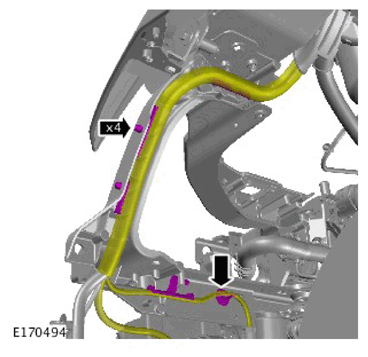

    G11311506Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. NOTE:
    Left side only.

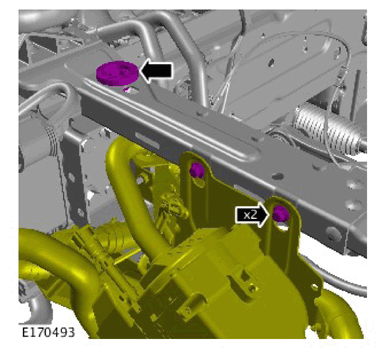

    G11311507Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. NOTE: Left side only.

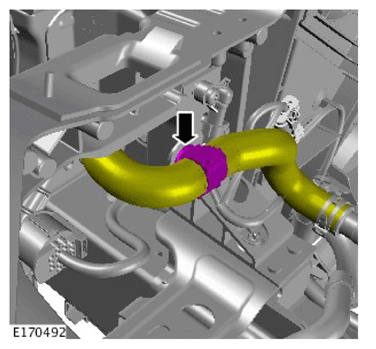

    G11311508Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

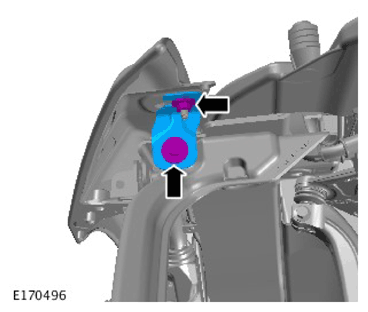

  8. G11311509Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 25 Nm

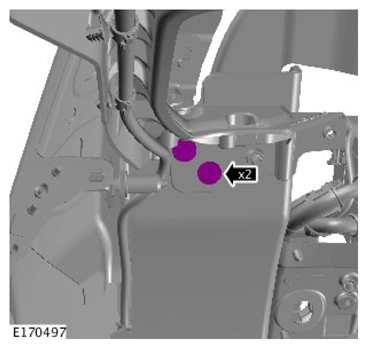

  9. G11311510Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 25 Nm

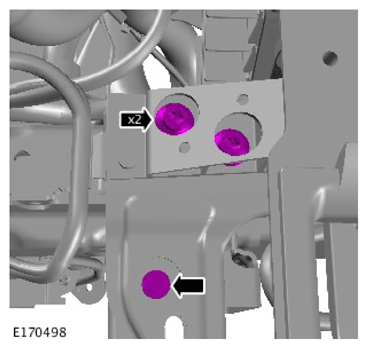

  10. G11311511Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 25 Nm

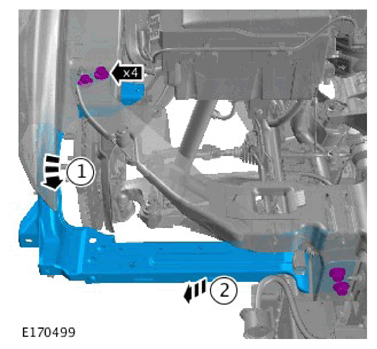

  11. G11311512Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 25 Nm
