Front Wheel Arch Liner - Project 8 (G2245704): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for left side components, right side components are similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: Jacking and Lifting article (Description and Operation).
Remove the wheel and tire.
Refer to: Wheel and Tire article (Removal and Installation).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

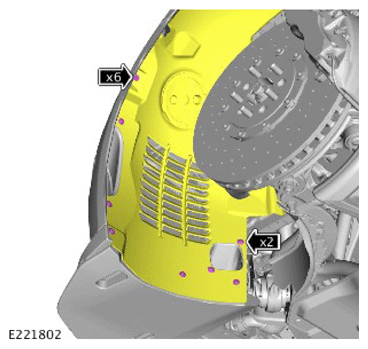

- Remove the 6 screws.
- Remove the 2 clips.
- Release the front section of the front wheel arch liner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

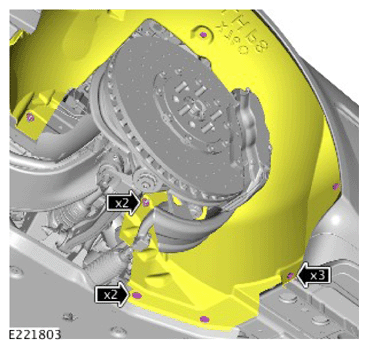

- Remove the 2 nuts.
- Remove the 2 bolts.
- Remove the 3 fasteners.
- Release the rear section of the front wheel arch liner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

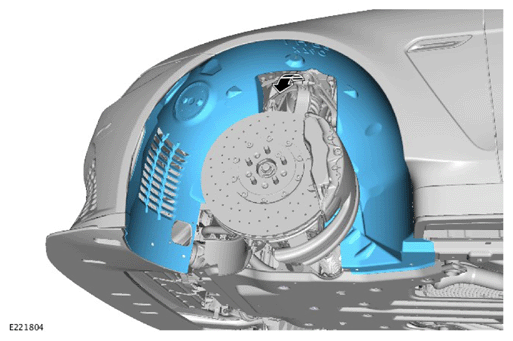

Remove the front wheel arch liner.
