Front CROSSMEMBER Support Bracket (G1798791): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Headlamp Assembly article (Removal and Installation).
  2. Refer to: FRONT CROSSMEMBER .

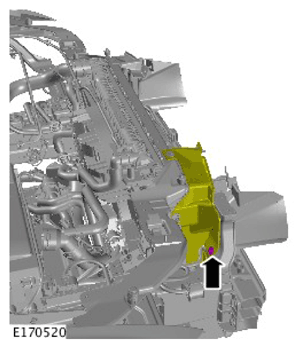

  3. NOTE: Right hand shown, left hand similar.
    G11311513Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

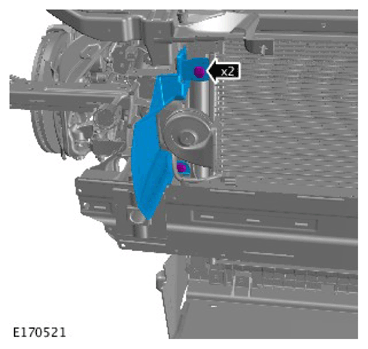

  4. NOTE: Right hand shown, left hand similar.
    G11311514Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

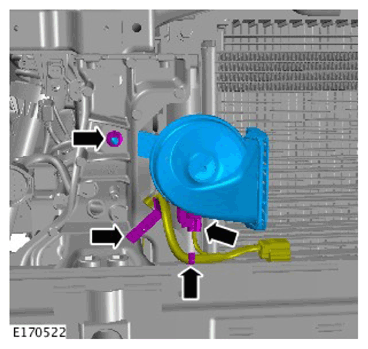

  5. G11311515Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 10 Nm

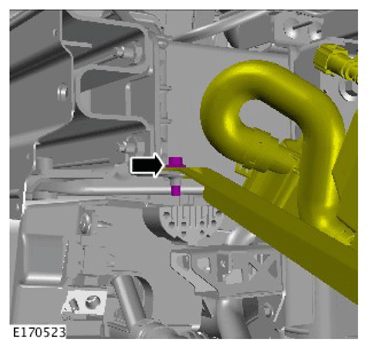

  6. NOTE:
    left side only.
    G11311516Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 10 Nm

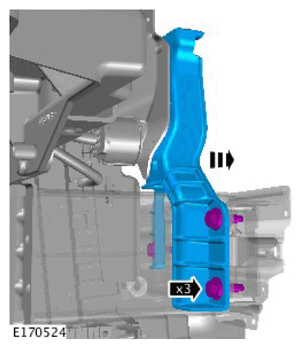

  7. G11311517Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 25 Nm
