Fender - Project 8 (G2245703): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Care must be taken to avoid damaging the surrounding paintwork.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: Jacking and Lifting article (Description and Operation).
Remove the headlamp assembly.
Refer to: Headlamp Assembly article (Removal and Installation).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

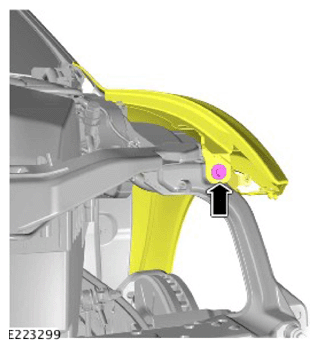

Remove the inner bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

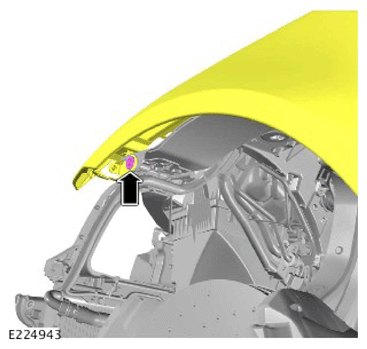

Remove the front bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

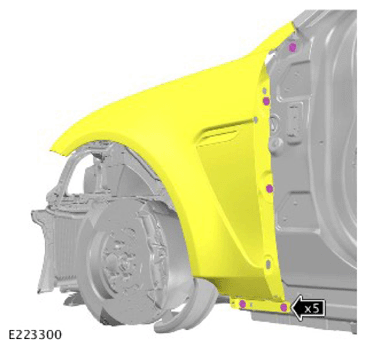

Remove the 5 rear bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

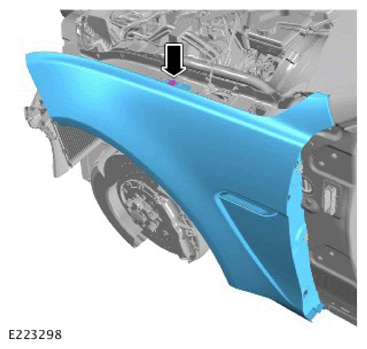

- Remove the upper bolt.
- Remove the fender.
Remove the fender finisher.
Refer to: FENDER FINISHER - PROJECT 8 (G2260039) .
