Fender (G1823028): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Always protect paintwork and glass when removing exterior components.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Jacking and Lifting article (Description and Operation).
Refer to: Battery and Charging System article (General Information, Specifications).
Refer to: Headlamp Assembly article (Removal and Installation).

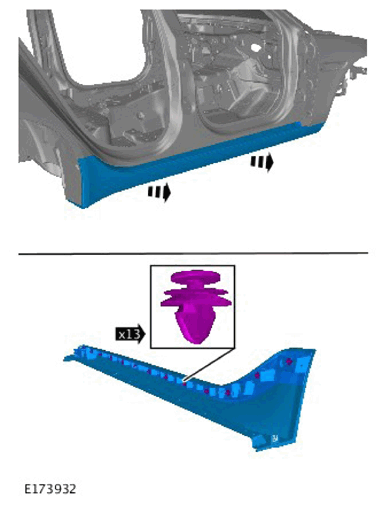

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

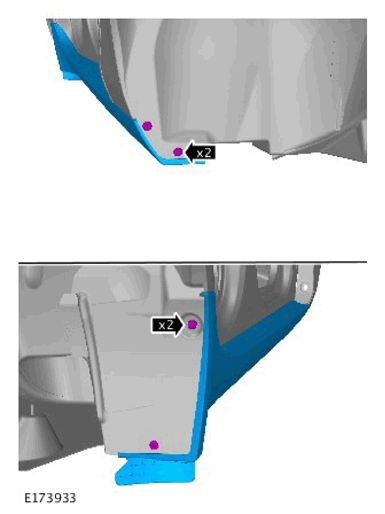

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

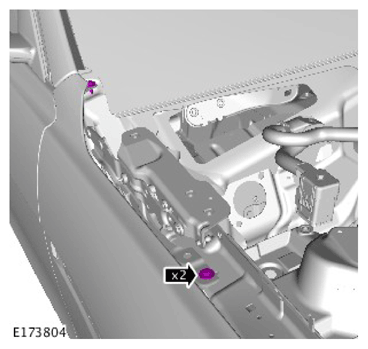

- Torque: 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

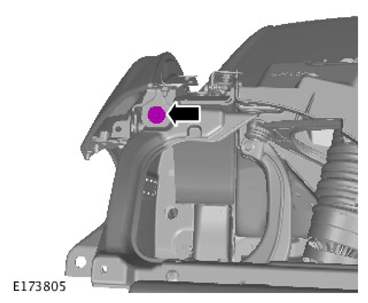

- Torque: 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque: 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque: 10 Nm

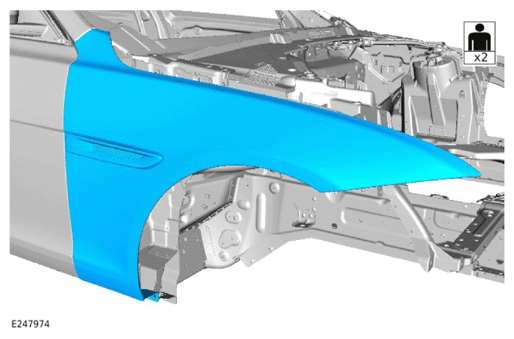

CAUTION: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: This step is not required if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
