Engine UNDERSHIELD - Project 8 (G2247311): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: Jacking and Lifting article (Description and Operation).
Remove the front splitter.
Refer to: FRONT SPLITTER REPLACE - PROJECT 8 (G2246289) .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

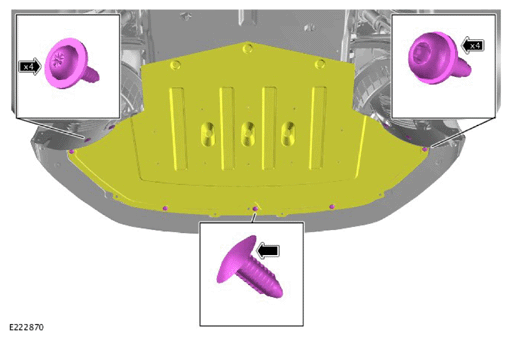

- Remove the clip.
- Remove the 4 screws.
- Remove the 4 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

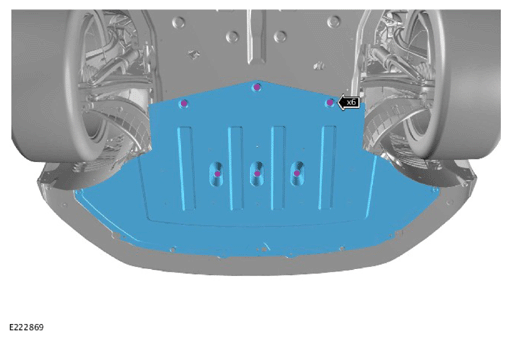

- Remove the 6 bolts.
- Remove the engine undershield.
