Torque Specification

NOTE: Numbers with a green background are a single use components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

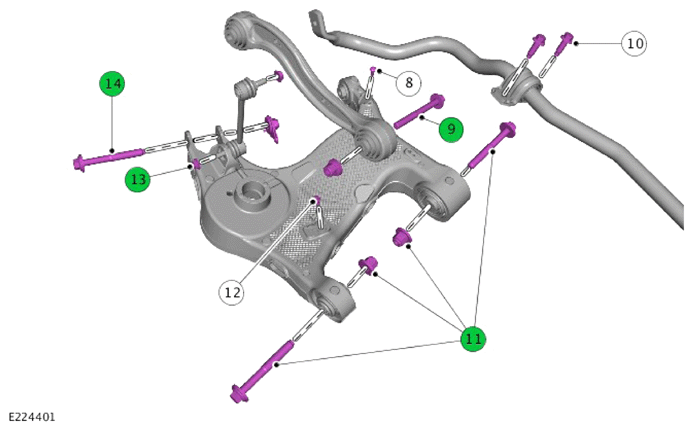

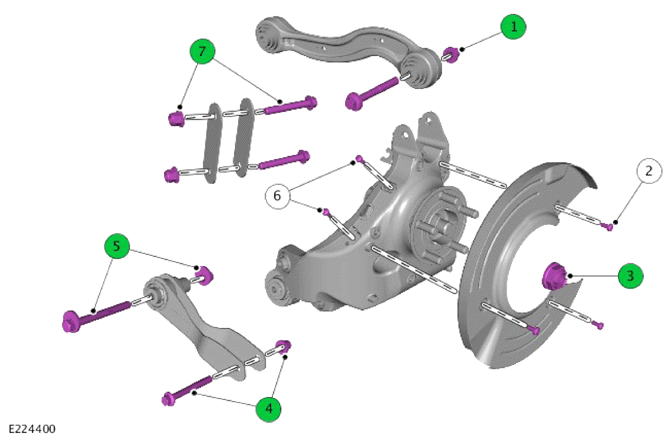

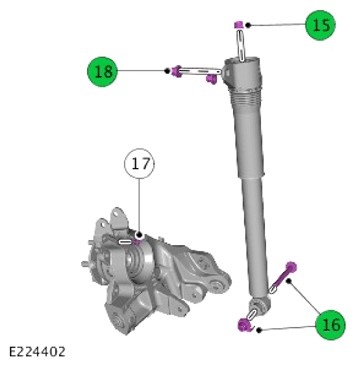

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN
1	Upper control arm to wheel knuckle bolt and nut M12 x 110 mm	Stage 1: 60	Stage 2: 60°	Stage 1: 44.2	Stage 2: 60°	-
2	Brake disc shield bolt M6 x 1 x 14 mm	9		-		79.6
3	Halfshaft nut - Stage 1	175		129		-
3	Halfshaft nut - stage 2	Loosen 90°		Loosen 90°
3	Halfshaft nut - stage 3	100		74
3	Halfshaft nut - stage 4	90°		90°
4	Toe link to wheel knuckle bolt and nut M12 x 100 mm	Stage 1: 80	Stage 2: 60°	Stage 1: 59	Stage 2: 60°	-
5	Toe link to subframe bolt and nut M14 x 130 mm	Stage 1: 60	Stage 2: 90°	Stage 1: 44.2	Stage 2: 90°	-
6	Wheel speed sensor bolt M6 x 1 x14 mm	9		-		79.6
6	Wheel speed sensor harness bracket bolt M6 x 1 x 14 mm	9		-		79.6
7	Lower control arm link bolt and nut M10 x70 mm	Stage 1: 48	Stage 2: 60°	Stage 1: 35.4	Stage 2: 60°	-
8	Wheel speed sensor harness bracket bolt M6 x 1 x14 mm	9		-		79.6
9	Upper control arm to subframe bolt and nut M12 x 110 mm	Stage 1: 60	Stage 2: 60°	Stage 1: 44.2	Stage 2: 60°	-
10	Stabilizer bar bolt M10 x 1.5 x 25 mm	60		44.2		-
11	Lower control arm to subframe bolt and nut M14 x115 mm	Stage 1: 110	Stage 2: 360°	Stage 1: 81.1	Stage 2: 360°	-
12	Height sensor link bolt M6	9		-		79.6
13	Stabilizer bar link nut	Stage 1: 40	Stage 2: 45°	Stage 1: 29.5	Stage 2: 45°	-
14	Lower control arm to wheel knuckle bolt M14 x 115mm	Stage 1: 110	Stage 2: 60°	Stage 1: 81.1	Stage 2: 60°	-
15	Shock absorber upper nut M12 x 1.75	27		19.9		-
15	Adaptive shock absorber upper nut M12 x 1.75	40		29.5		-
16	Shock absorber lower bolt and nut M14 x 120 mm	Stage 1: 70	Stage 2: 120°	Stage 1: 51.6	Stage 2: 120°	-
17	Brake caliper wiring harness bracket bolt M6 x 1 x14 mm	9		-		79.6
18	Shock absorber to body nut M12	Stage 1: 60	Stage 2: 60°	Stage 1: 44.2	Stage 2: 60°	-
