Spring (G2223950): Installation
CAUTION:
Make sure that all the nuts and bolts are tightened with the vehicle at normal ride height.

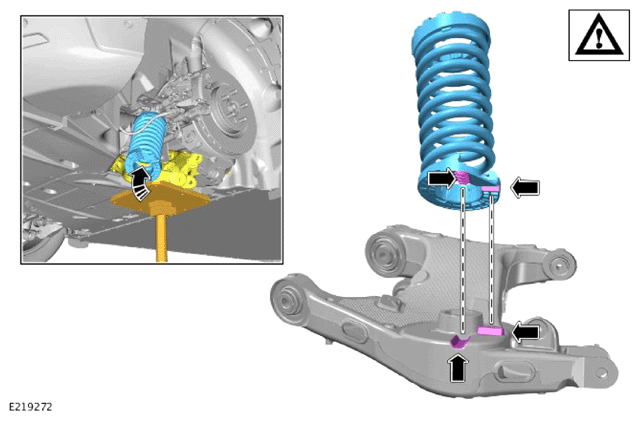

- Install the rear spring.
- Carefully reposition the lower control arm with the transmission jack.
- Install 2 new lower control arm to subframe nuts and bolts.
Renew Part: Rear lower arm to subframe nut and bolt Quantity: 2
Torque
Stage 1: 110Nm
Stage 2: 360°
-
- Install the wheel knuckle assembly.
- Install the bolt.
Renew Part: Rear lower arm to knuckle nut and bolt Quantity: 1 .
Torque
Stage 1: 110Nm
Stage 2: 60°
-
CAUTION: Make sure to counter hold the ball joint.
- Attach the stabilizer bar link.
- Install and tighten the nut.
Renew Part: Stabilizer bar link retaining nut(s) Quantity: 1 .
Torque
Stage 1: 40Nm
Stage 2: 45°
- Install 2 new integral link bolts and nuts.
Renew Part: Rear lower control arm nut and bolt Quantity: 2
Torque
Stage 1: 48Nm
Stage 2: 60°
-
- Attach the tie-rod to the wheel knuckle assembly.
- Install the nut and bolt.
Renew Part: Tie-rod nut and bolt Quantity: 1
- Install the shock absorber lower nut and bolt.
Renew Part: Shock absorber nut and bolt Quantity: 1 .
Torque : 170Nm
- Install the height sensor link arm.
- Install the rear wheel and tire.
Refer to: WHEEL AND TIRE .
- Use approved Jaguar Land Rover wheel alignment equipment to check the wheel alignment and adjust if required.
Refer to: WHEEL ALIGNMENT .
