Rear Upper Control Arm (G2224769): Removal

NOTE:

This procedure shows the vehicle equipped with coil suspension. Vehicles equipped with air suspension are similar.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

Vehicles with air suspension

Using the Jaguar Land Rover approved diagnostic equipment, depressurize the air spring at the relevant corner.
Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE .

The following step(s) applies to:

All vehicles
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the rear wheel and tire.
Refer to: WHEEL AND TIRE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

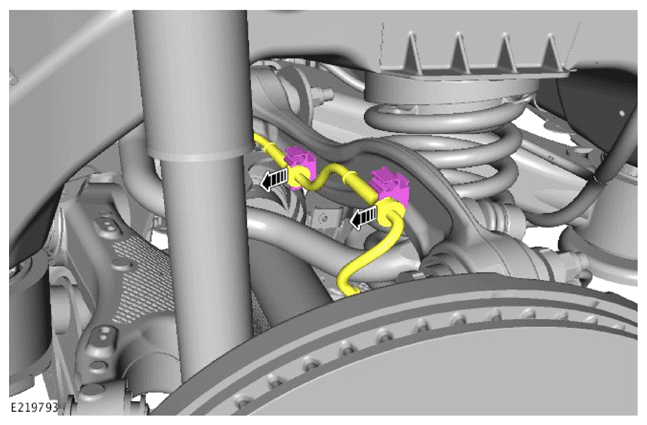

Release the wiring harness and retaining clip from the upper control arm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable hydraulic stand, support the rear lower control arm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

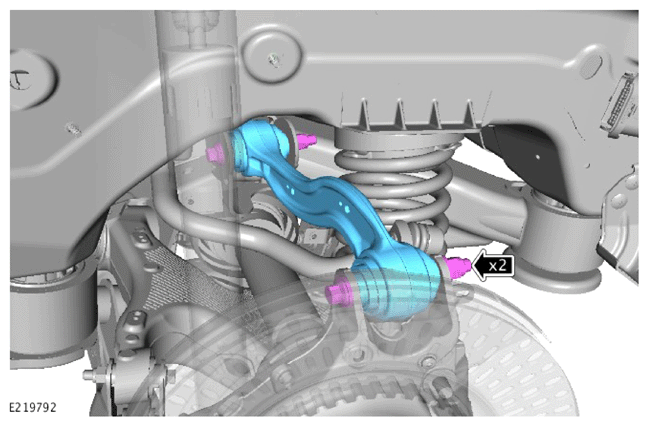

- Remove and discard the nuts and bolts.
- Remove the rear upper control arm.
