Electric Park Brake Switch (G2214057): Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Remove the instrument panel lower trim panel.

    Refer to: INSTRUMENT PANEL LOWER TRIM PANEL .

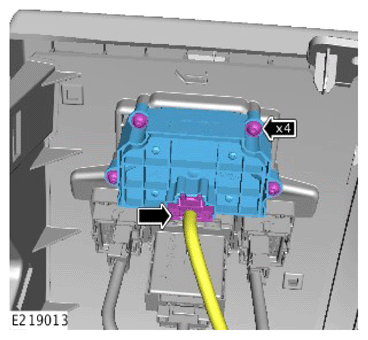

  2. G13920782Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the Electric Park Brake (EPB) switch electrical connector.
    • Remove the EPB switch.
