Electric Park Brake Release When The Vehicle Has No Electrical Power (G2219525): Check

NOTE:

Right side shown, left side similar.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the rear wheel and tire assembly.
Refer to: WHEEL AND TIRE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

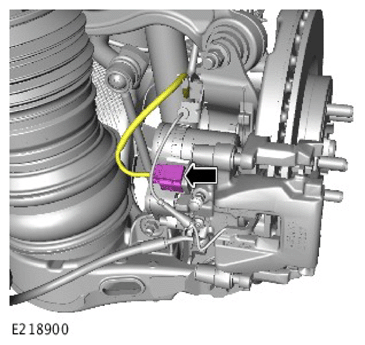

Disconnect the Electric Parking Brake (EPB) electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the EPB actuator and discard the bolts.
- Discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

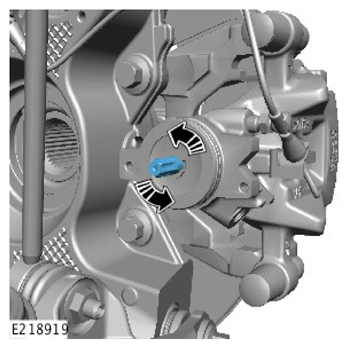

- Turn the right caliper pivot counter-clockwise to set the rear brake caliper to the maintenance position.
- Turn the left caliper pivot clockwise to set the rear brake caliper to the maintenance position.
