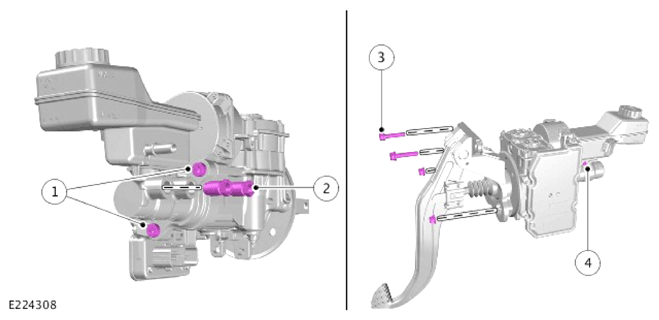

Component Torque Location

G13920786Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATION

  DESCRIPTION  NM LB-FT
1 Brake master cylinder bolts 22 16.2
2 Brake pipe unions 17.5 12.9
3 Brake pedal bolts and nuts 25 18.4
4 Brake fluid reservoir bolt 7 5.1
