Brake Pedal And Bracket (G2214059): Removal
WARNING:
This procedure contains steps that require component removal in close proximity to High Voltage (HV) cables or connectors. Extra care must be taken during these steps to avoid damage or excessive movement of the High Voltage (HV) cables or connectors.
CAUTION:
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- Do not allow dirt or foreign liquids to enter the reservoir. Use only new brake fluid of the correct specification from airtight containers. Do not mix brands of brake fluid as they may not be compatible.
- If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Using the Jaguar Land Rover (JLR) approved diagnostic equipment, select 'Activate Control Module Manufacturing Service Mode'.
General Equipment : Jaguar Land Rover approved diagnostic equipment
- If the JLR approved diagnostic equipment is not available, disconnect the 12V system and make sure the smart key is not inside the vehicle. So that the Booster is inactive and safe.
Refer to: 12V SYSTEM DISCONNECT .
- Remove the brake pedal switch.
Refer to: BRAKE PEDAL SWITCH .

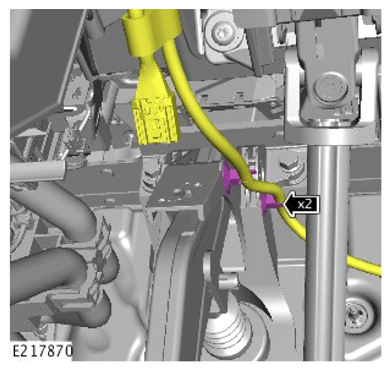

Release the 2 wiring harness clips.
-

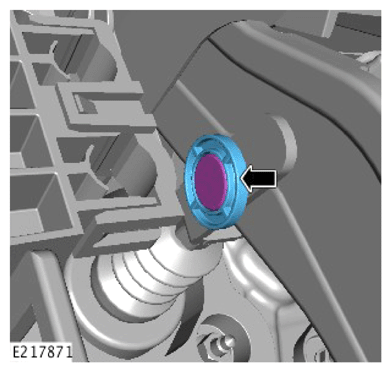

NOTE: Discard the brake pedal retaining pin.
Remove the brake pedal retaining pin.

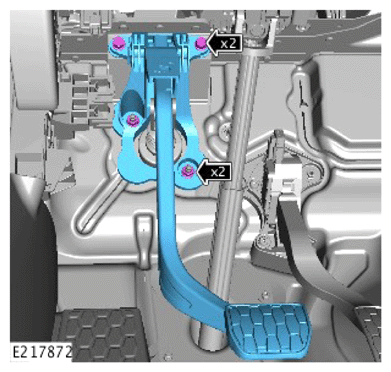

Remove the brake pedal and bracket.
