Instrument Cluster (G2244549): Specifications

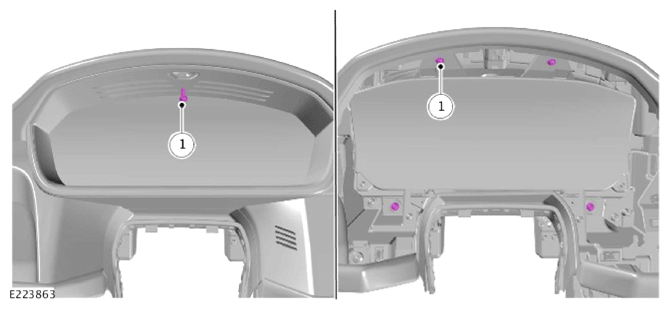

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATION
DESCRIPTION
NM
LB-FT
LB-IN
1
Instrument cluster screws
1.5
-
13.27
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
