Instrument Cluster

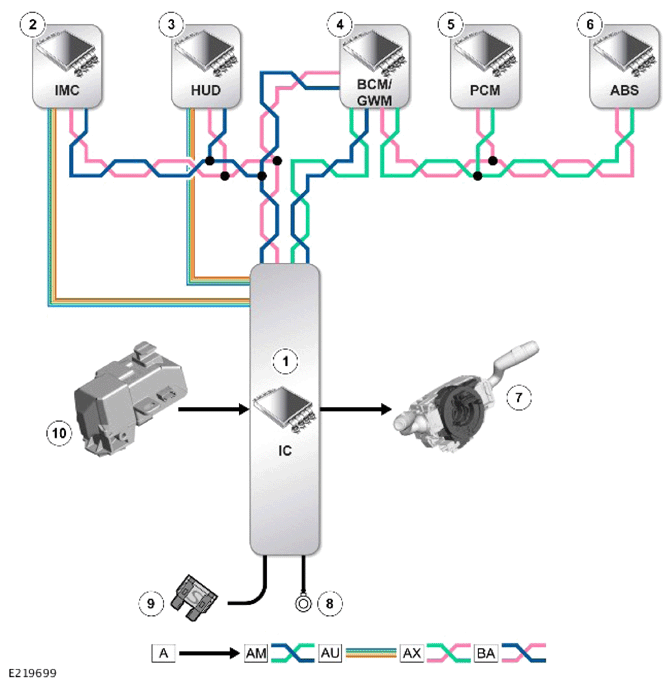

A = HARDWIRED: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AX = FLEXRAY: BA = HS CAN HUMAN MACHINE INTERFACE (HMI) BUS .
| ITEM | DESCRIPTION |
|---|---|
| 1 | Instrument Cluster (IC) |
| 2 | Infotainment Master Controller (IMC) |
| 3 | Head Up Display (HUD) |
| 4 | Body Control Module/Gateway Module (BCM/GWM) |
| 5 | Powertrain Control Module (PCM) |
| 6 | Anti-lock Brake System (ABS) control module |
| 7 | Steering wheel module (SWM) |
| 8 | Ground |
| 9 | Power Supply from Rear Junction Box (RJB) |
| 10 | Electric Steering Column Lock (ESCL) |
