Exterior Lighting (G2142720): Specifications

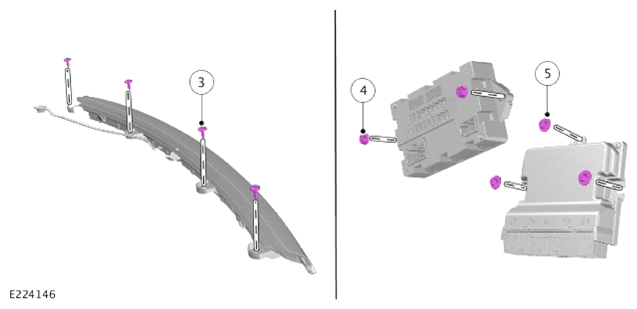

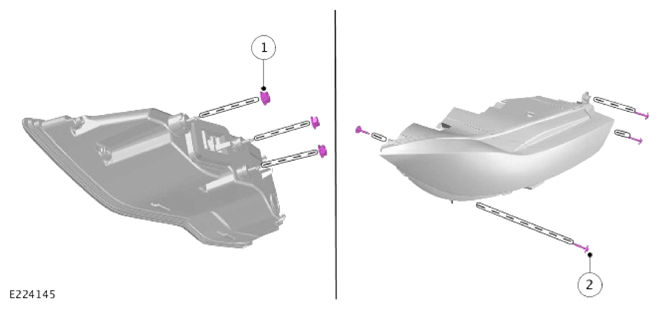

COMPONENT TORQUE LOCATION
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATION
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 1 |
Inner tail lamp nuts |
4 |
- |
35.4 |
| 2 |
Headlamp retaining bolts |
7 |
- |
61.9 |
| 3 |
High mounted stop lamp bolts |
1.9 |
- |
16.8 |
| 4 |
Quiescent Current Control Module (QCCM) nuts |
7 |
- |
61.9 |
| 5 |
Suspension Control Module (SUMB) nuts |
6 |
- |
53.1 |
