Clutch System Bleeding (G1828027): Draining

WARNING: Do not allow dirt or foreign liquids to enter the reservoir. Use only new brake fluid of the correct specification from airtight containers. Do not mix brands of brake fluid as they may not be compatible.
CAUTION:
  • Make sure that the brake fluid level does not drop below the MIN mark.
  • The pressure bleeder must not exceed 2 bar.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. NOTE: Left illustration shown, right is similar.
    G11305926Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the cowl vent screen access panel.

  3. WARNING: Do not allow dirt or foreign liquids to enter the reservoir. Use only new brake fluid of the correct specification from airtight containers. Do not mix brands of brake fluid as they may not be compatible.
    G11308686Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the brake fluid reservoir cap.

  4. CAUTION: The brake fluid reservoir must remain full with new, clean brake fluid at all times during bleeding.
    G11308691Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Fill the brake fluid reservoir to the MAX mark.

  5. Connect the Jaguar approved pressure bleeding tool to the master cylinder reservoir.

    General Equipment: Brake/clutch system pressure bleeder/filler

  6. Remove the Air Deflector.

    Refer to: ENGINE UNDERSHIELD - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/V6 S/C 3.0L PETROL .

  7. Attach the clear bleed tube to the Clutch bleed port and immerse the free end of the bleed tube in a bleed jar containing a small quantity of approved brake fluid.
  8. NOTE: Make sure to release the clutch bleed port a minimum of two turns.

    Release the Clutch bleed port screw.

  9. CAUTION: The brake fluid reservoir must remain full with new, clean brake fluid at all times during bleeding.

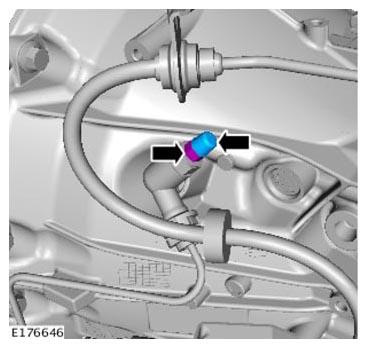

    G11314337Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Switch on the Jaguar approved pressure bleeding tool until a steady flow of clean air free fluid is running from the bleed point, tighten the bleed screw.

    Torque  : 5 Nm

  10. Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean and dry. Plug open connections to prevent contamination.
  11. Disconnect the Jaguar approved pressure bleeding tool from the reservoir.

    General Equipment  : Brake/clutch system pressure bleeder/filler

  12. G11308691Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Fill the brake fluid reservoir to the MAX mark.

  13. G11308686Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the brake fluid reservoir cap.

  14. WARNING: After carrying out repairs, the Clutch system must be checked visually for leaks. Failure to follow this instruction may result in personal injury.

    Operate the clutch pedal and check for leaks.

  15. NOTE: Left illustration shown, right is similar.
    G11305926Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the cowl vent screen access panel.

  16. Install the Air Deflector.

    Refer to: ENGINE UNDERSHIELD - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/V6 S/C 3.0L PETROL
