Toe Link (G1899822): Removal
CAUTION:
Nuts and bolts must be tightened with vehicle at normal ride height.
NOTE:
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Before replacing the Toe Link, make sure to have followed the diagnosis and testing procedure.
Refer to: SUSPENSION ARMS
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
-
CAUTION: Discard the nut and bolt.

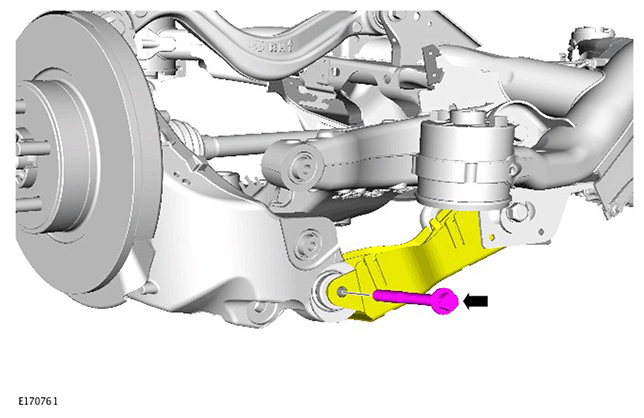

Disconnect the toe link from the wheel knuckle.
-
CAUTION: Discard the nut and bolt.

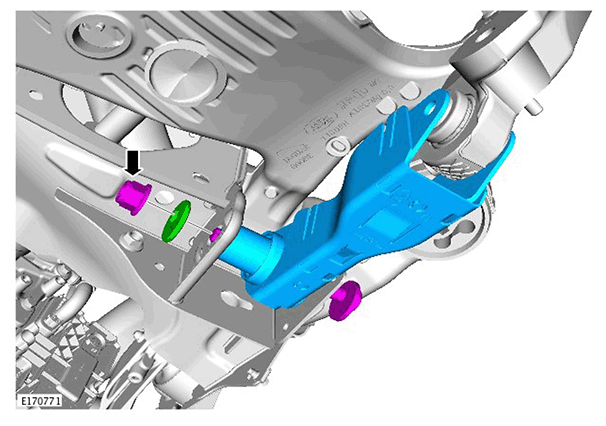

Disconnect the toe link from the subframe.
